SPUR GEARS

.SPUR GEARS

Spur Gear Design – 3D CAD models and 2D CAD drawings
You can verify the dimensions of our standard Spur Gears through our PDF catalog or our Newly implemented Gear Selector provided by Part Community. Free CAD data is available on our website. Click the logo below to access the Spur Gear Selector.

Quotation of Standard Spur Gears
Please request your Quotation for Spur Gears through our “Request For Quotation” page.

Spur Gear Modification
We can customize our standard Spur Gears to suit your specific applications, please consult with us. We are offering gear customization services. For more details and examples of modifications, please visit our “Gear Modification” page.


SG GROUND SPUR GEAR SG GROUND SPUR GEAR SHAFTS SGE GROUND SPUR GEARS
SG GROUND SPUR GEAR SG GROUND SPUR GEAR SHAFTS SGE GROUND SPUR GEARS
Material (ISO) : SCM435 or SCM440
Module : 0.5 – 3.0
Number of teeth : 14 to 120
ISO class N5
Material (ISO) : SCM435 or SCM440
Module : 0.5 – 2.0
Number of teeth : 14 to 26
ISO class N5
Material (ISO) : S45C
Module : 0.5 – 3.0
Number of teeth : 14 to 120
ISO class N7

High precision ground spur gears. Suitable for high RPM Applications. Customizing is available for this gears.

High precision ground spur gears. Suitable for high RPM Applications. Customizing is available for this gears.

Competitive price precision ground spur gears. Customizing is available for this gears.
PDF CATALOG PDF CATALOG PDF CATALOG

304 STAINLESS STEEL SPUR GEARS 304 STAINLESS STEEL SPUR GEAR SHAFTS BRASS SPUR GEARS
304 STAINLESS STEEL SPUR GEARS 304 STAINLESS STEEL SPUR GEAR SHAFTS BRASS SPUR GEARS
Material (ISO) : SUS304
Module : 0.5 – 2.0
Number of teeth : 14 to 120
ISO class N9
Material (ISO) : SUS304
Module : 1.0 – 3.0
Module : 0.5 – 2.0
Number of teeth : 14 to 120
ISO class N9
Material : C3713P or C3604B
Module : 0.3 – 0.8
Number of teeth : 14 to 120
ISO class N9 or N10
Gears made out of 304 stainless steel providing better corrosion resistance than 303 stainless steel.
Gears made out of 304 stainless steel providing better corrosion resistance than 303 stainless steel.
PDF CATALOG PDF CATALOG PDF CATALOG

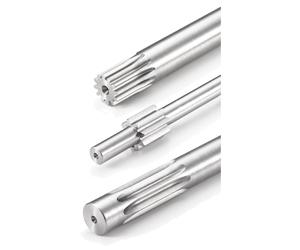

BRASS SPUR GEAR SHAFTS STEEL SPUR GEARS STEEL SPUR GEAR SHAFTS
BRASS SPUR GEAR SHAFTS STEEL SPUR GEARS STEEL SPUR GEAR SHAFTS
Material (ISO) : C3713P or C3604B
Module : 05, 0.75, 0.8
Number of teeth : 14 to 120
ISO class N9 or N10
Material (ISO) : S45C
Module : 0.5 – 5.0
Number of teeth : 14 to 120
ISO class N8
Material (ISO) : S45C
Module : 0.5 – 3.0
Number of teeth : 8 to 120
ISO class N8
PDF CATALOG PDF CATALOG PDF CATALOG

PLASTIC SPUR GEAR PLASTIC SPUR GEAR PLASTIC SPUR GEARS with BRASS BUSH BEARING
PLASTIC SPUR GEAR PLASTIC SPUR GEAR PLASTIC SPUR GEARS with BRASS BUSH
Material : POM (White)
Module : 0.5 – 1.0
Number of teeth : 14 to 100
ISO class N9 – N10
Material : POM(Blue)
Module : 0.5 – 3.0
Number of teeth : 14 to 100
ISO class N9 – N10
Material : POM (white)with Brass bush bearing
Module : 1.0
Number of teeth : 14 to 120
ISO class N9 – N10

Polyacetal (POM) gears have a lower water absorption rate and dimensional stability compared with nylon gears.

Blue Polyacetal (Blue POM) gears have a lower water absorption rate and dimensional stability compared with nylon gears, due to this greater material integrity POM has lower chances of bacterial and mold contamination and is therefor  approved by regulating authorities in the food industries of the US and Europe.

Polyacetal (POM) gears with a brass bush bearing, the bore diameter tolerance is H8. This gear was intended for applications that require smaller gap tolerances between the shaft and bore that only plastic gears can’t provide.
PDF CATALOG PDF CATALOG PDF CATALOG

MOLDED PLASTIC SPUR GEAR
MOLDED PLASTIC SPUR GEAR
Material : POM (Black)
Module : 0.5
Number of teeth : 20 to 120
ISO class N11
Competitive priced molded spur gears.
PDF CATALOG
